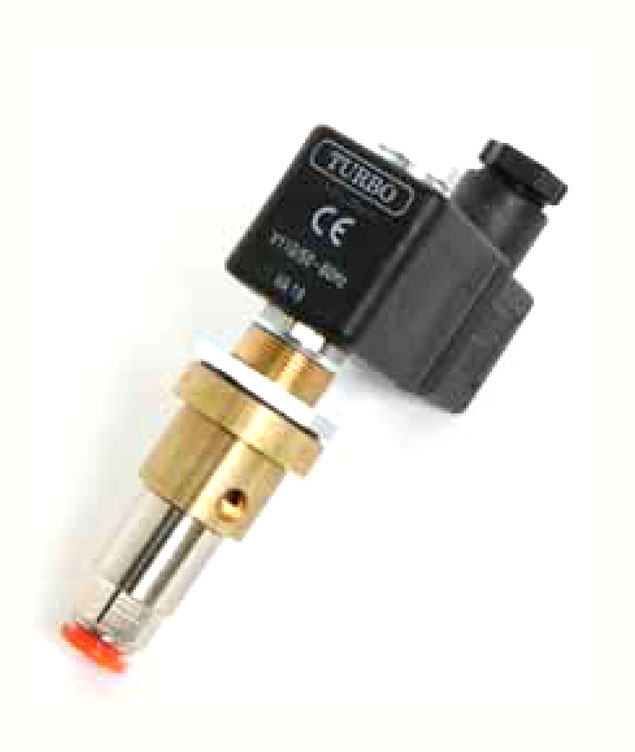

E2 PILOT VALVES LD Series

CHARACTERISTICS

Fluid Filtered and oilfree compressed air
Operating pressure min 0,5; max 7,5 bar
Temperature range -20°C +80°C
Body Brass
Core tube Stainless Steel
Plunger Stainless Steel
Coil insulation Class H
Connector PG9 / IP 65
Standard voltage 230 -110 – 24V
50-60VHz 19VA
24VDC15W
