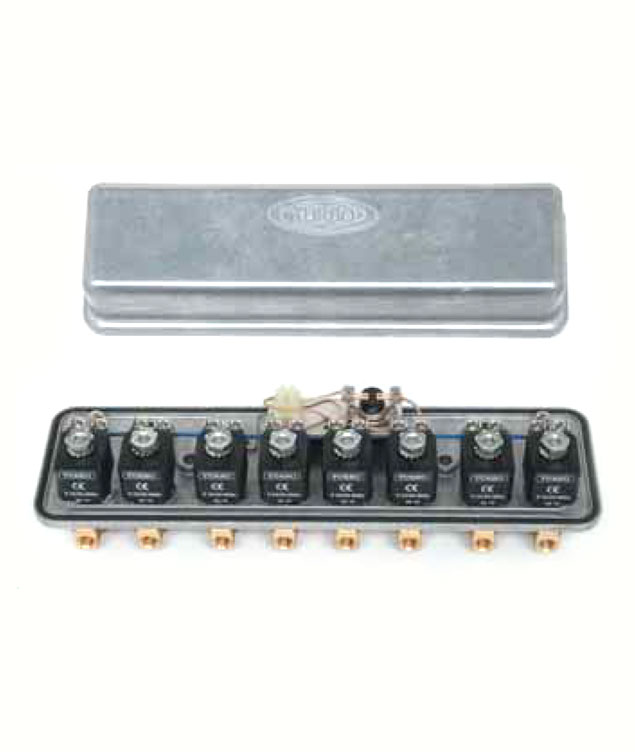

Pilot Valve Boxes RCP Series

CHARACTERISTICS

Fluid Filtered and oilfree compressed air
Operating pressure min 0,5; max 7,5 bar
Temperature range
W/Heating
-20°C +80°C
-40°C +80°C
Body e cover Die cast aluminium
Core tube Stainless Steel
Plunger Stainless Steel
Screws Stainless Steel
Coil insulation Class H
Protection IP66
Standard voltage 230 -110 – 24V
50-60VHz 19VA
24VDC15W
