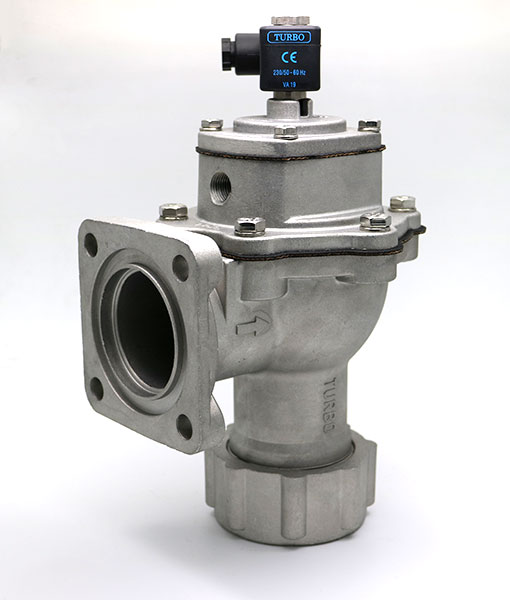

Pulse Valve Model : EP40
CHARACTERISTICS
Fluid | Filtered and oilfree compressed air |
Temperature | STDdiaphragm -40°C; +80°C |
range | Viton diaphragm -30°C; +200°C |
Operating pressure | min. 0,5; max 7,5 bar |
Body e cover | Die cast aluminium |
Core tube | Stainless Steel |
Plunger | Stainless Steel |
Screws | Stainless Steel |
Coil insulation | Class H |
Connector | PG9; IP65 DIN 43650 ISO 4400 |
Standard voltage | 230 -110 – 24V / 50-60VHz 19VA 24VDC15W |
Pulse Valve Model : EP40
![B3 FLANGED PULSE VALVES E Series](http://www.turboasia.co.th/wp-content/uploads/2017/01/b3-1-705x400.jpg)
![B3 FLANGED PULSE VALVES E Series](http://www.turboasia.co.th/wp-content/uploads/2017/01/b3-2-482x400.jpg)
![B3 FLANGED PULSE VALVES E Series](http://www.turboasia.co.th/wp-content/uploads/2017/01/screenshot-2017-01-26-05-20-25.png)
![B3 FLANGED PULSE VALVES E Series](http://www.turboasia.co.th/wp-content/uploads/2017/01/b3-spec-800x172.png)
